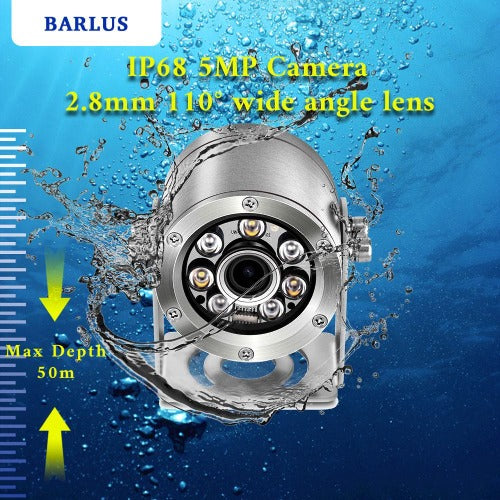

Adjustable focal length 3.6mm lens - Underwater fixed camera for seawater freshwater
Adjustable focal length 3.6mm lens - Underwater fixed camera for seawater freshwater
Couldn't load pickup availability
For bulk purchases, please contact Tim (sales2@barluscam.com) or click on Chat with us below right to get a discount.🤑
Click below to view parameters👇
Model comparison
Model comparison
| model | SK2F-4PX10 | SK2F-4P6X10 | SK2F-4P12X10 | SK5F-4PX10 | SK5F-4P5SX10 | SK8F-4PX10 |
| camera lens | 3.6mm (H.FOV:80°) motorized focus lens | |||||
| pixel | 2 MP 1920×1080P 30FPS 1 MP 1280×720P 30FPS 1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2 |
2 MP 1920×1080P 60FPS 1 MP 1280×720P 60FPS 1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2 |
2 MP 1920×1080P 120FPS 1 MP 1280×720P 120FPS 1/1.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2 |
5MP 2592×1944P 20FPS 4MP 2560×1440P 20FPS 3MP 2304×1296P 30FPS 2MP 1920×1080P 30FPS 1/2.8" SONY sensor ,color 0.01Lux F1.2,black/white 0.0001Lux F1.2 |
5MP 2592×1944P 50FPS 4MP 2560×1440P 60FPS 3MP 2304×1296P 60FPS 2MP 1920×1080P 60FPS 1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2 |
8MP 3840×2160P 30fps 5MP 2592×1944P 30FPS 4MP 2560×1440P 30FPS 1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2 |

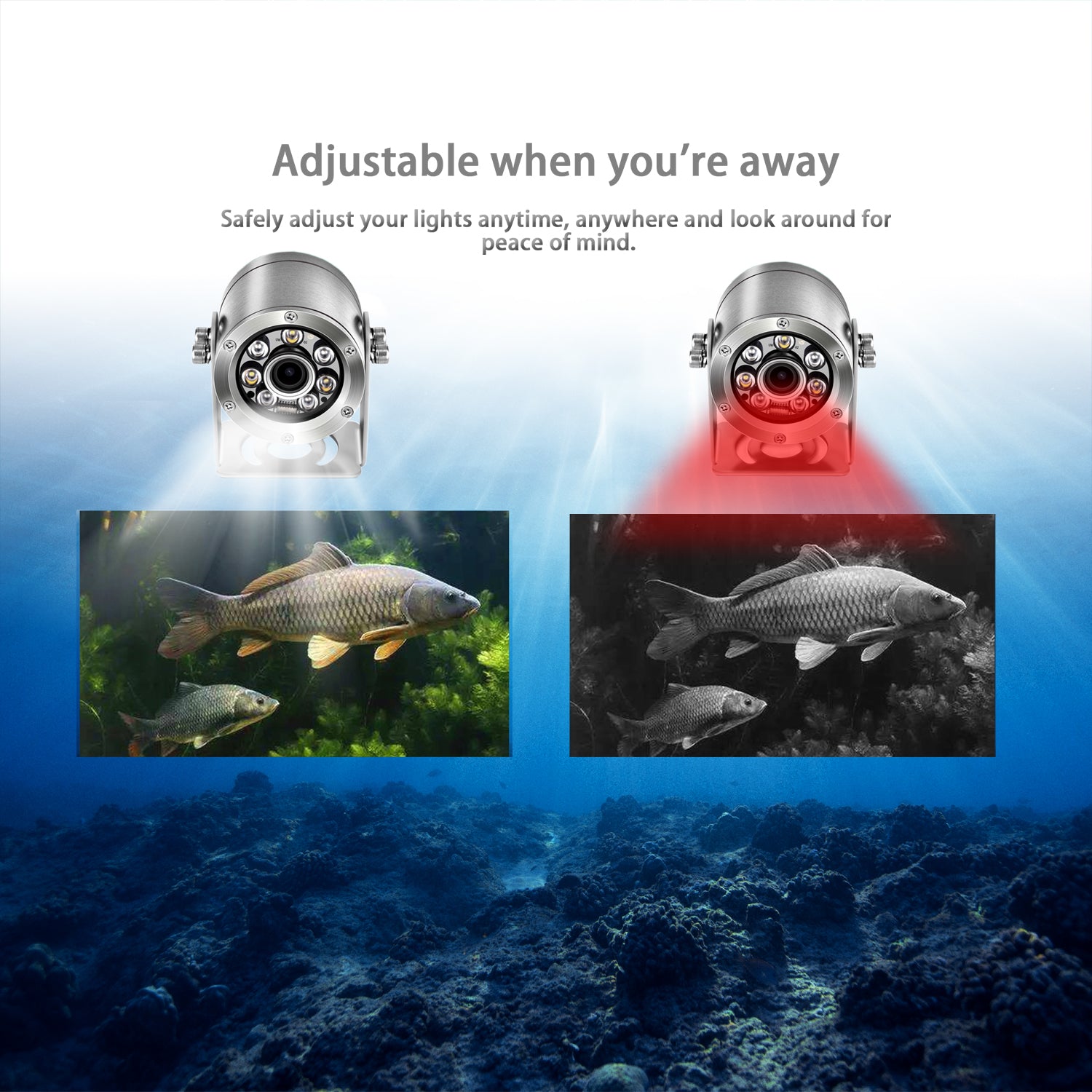

| fill light | (Automatic mode/manual control/time control) 3 modes ------ 3PCS white light, 10 levels of brightness, 1000 lumens | |||||
| (Automatic mode/manual control/time control) 3 modes ------ 4PCS infrared light, 10-level brightness, 1000 lumens | ||||||
| image color settings | 1: white light - full color; 2: Infrared light - automatic color to black and white; |
|||||
| support equipment | Support iOS, Android, computer, NVR. | |||||
| support agreement | IPv4/IPv6,802.1x,RTSP,RTMP,ONVIF;HTTP,HTTPS, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,SDK Secondary development | |||||
| texture | Seawater grade stainless steel | |||||
Product information
Product information
Supporting device: Support iOS, Android, computer, NVR.
Supporting agreement: IPv4/IPv6,802.1x,RTSP,RTMP,ONVIF;HTTP,HTTPS, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,SDK Secondary development

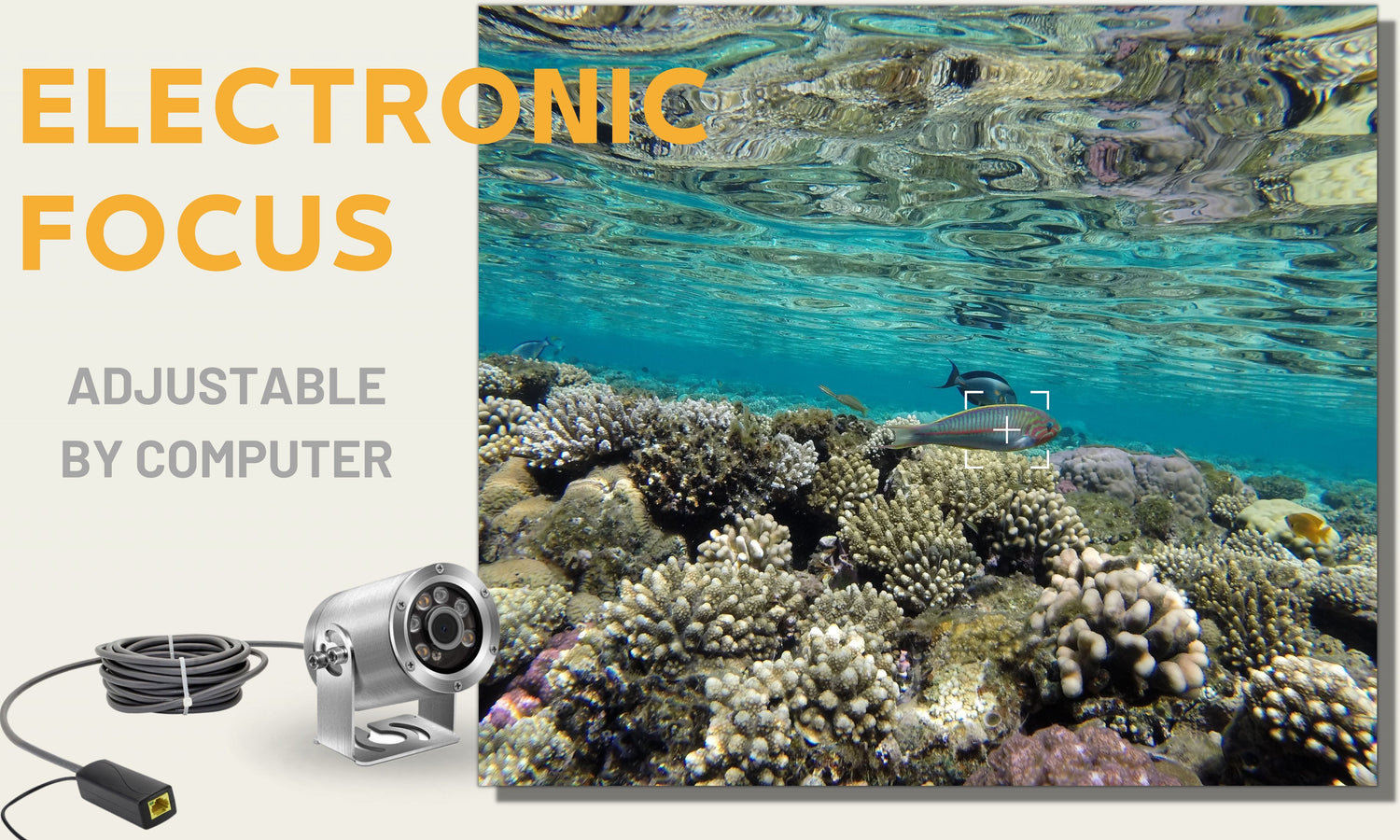

Focal length: ≥5cm (adjustable in software)

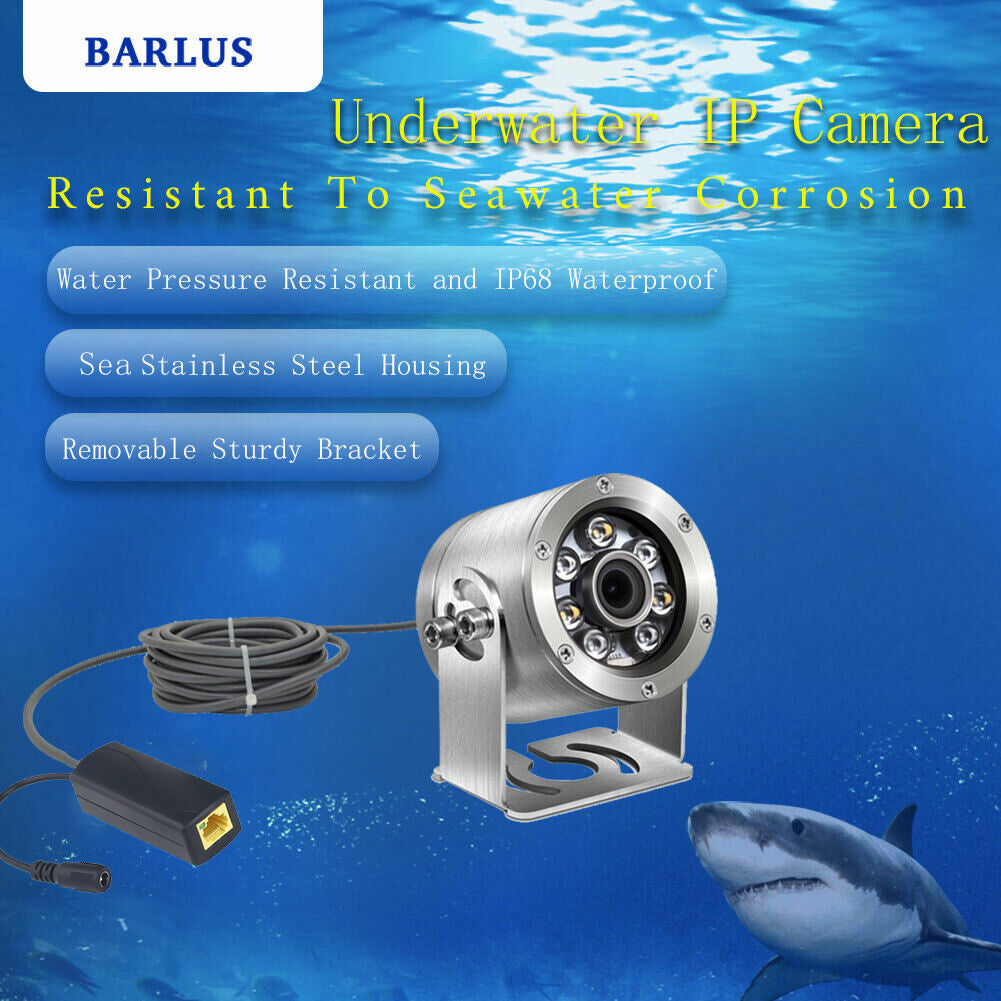

Material: Seawater grade stainless steel
Waterproof level: IP68(Permanently installed underwater)
Water pressure resistance: Maximum 500Kpa (Maximum water depth 50M)
Cable: The default length is 10 meters (the longest is not more than 80 meters), PU material, diameter 7MM. Resistance to 60KG tension, anti-aging, anti-friction, anti-corrosion by sea water, special underwater wire.
Use environment: Land/vehicle/ship/surface/underwater (fresh water and sea water)
Working humidity: 0%-100%
Operating temperature: -20°~55°
Support voltage:
When the cable = 10m, it supports POE and DC12V power supply
When the cable > 10m, only DC24V or POE can be selected for power supply (choose one of them)
Camera size：⌀ 70*100mm
Camera Weight：2.5KG
Package：1* camera
1* Camera bracket accessories
1*U disk (software and manual)
1 Year Warranty
