BARLUS

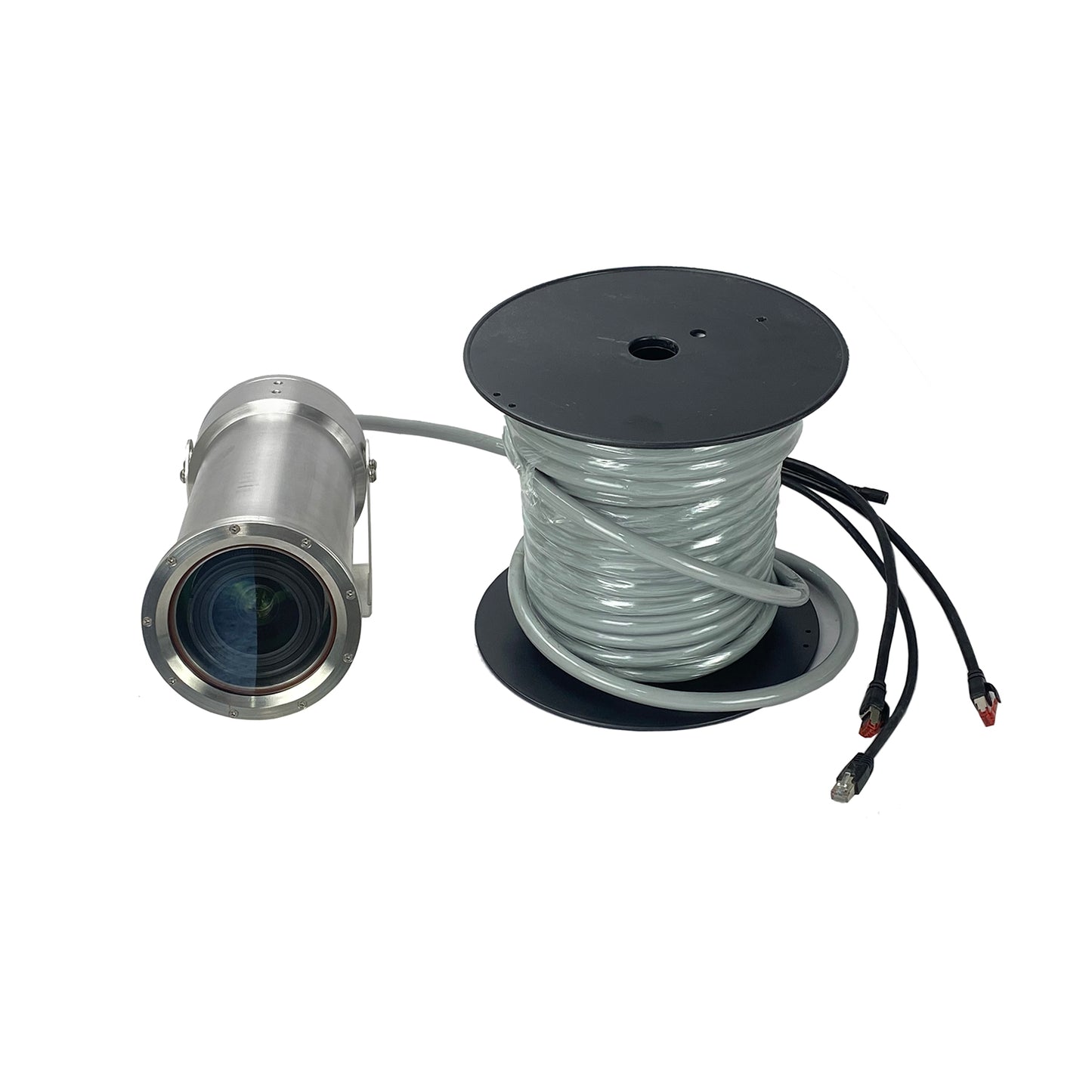

Underwater Global High-precision electric focusing underwater industrial camera

Underwater Global High-precision electric focusing underwater industrial camera

Regular price $3,750.00 USD
Regular price Sale price $3,750.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Model
Cable length
Power supply

For bulk purchases, please contact Tim (sales2@barluscam.com) or click on Chat with us below right to get a discount.🤑

Click below to view parameters👇

Model comparison

model GY-H5Z-1555DLX20 GY-H8Z-1555DLX20 GY-H12Z-1835DHX20 GY-H25Z-12DHX20
shot 15-55mm electric zoom 18-35mm electric zoom
W(H40°*V22°)
T(H10°*V6°)
Pixel Size 2.74µm x 2.74µm 3.45 µm × 3.45 µm 2.45 µm × 2.45 µm
Chart size 2/3" CMOS, Global shutter 1.1”  CMOS, Global shutter 1.1”  CMOS, Global shutter
Pixels 2448 × 2048 23FPS 2,840 *2,840   120FPS 4096*3000   60FPS 40fps @5120 × 5120
dynamic range 71.6 dB 58 dB
SNR 39.7 dB 41 dB
gain margin 0 dB ~ 15 dB 0 dB ~ 15 dB
Exposure time range 2 μs ~ 10 sec 45 μs ~ 10 sec
data format Mono 8/10/12
Bayer RG 8/10/10p/12/12p
YUV 422 Packed
YUV 422_YUYV_Packed
RGB 8

Product information

Features:

1: 10000Mb Ethernet high-speed transmission

2: The original image output pixel high frame rate

3: Global shutter

4: Electric zoom

5: IP68 waterproof rating

6: Seawater Grade Stainless Steel

 🎥Barlus underwater cameras are widely used in aquaculture cameras (fish farming, sea cucumber farming, etc.) , aquarium monitoring camera, shipboard camera, ship engine monitoring camera, marine pasture camera, underwater engineering acceptance camera, marine life detection camera, liquid operation camera for machine processing industry, etc.

Shutter mode: Global shutter, support auto exposure, manual exposure, one button exposure and other modes

Fill-in light: none

COLOUR: colours

Data interface: 10 Gigabit Ethernet(10000Mbit/s)

SDK: support

Operating system: Windows XP/7/10 32/64bits

Waterproofing grade: IP68

Texture: stainless steel

Glass cleaning function: Support for custom

Resistance to water pressure: Maximum 500Kpa (maximum water depth 50M)

Cable: Default length 20 meters,PU material, diameter 12MM. 60KG tensile resistance, aging resistance, friction resistance, seawater corrosion resistance, special underwater wire.

Service environmen: Land/vehicle/ship/surface/Underwater (fresh water, sea water)

Operating humidity: 0%-100%

Temperature: -20°~55°

Input voltage: DC24V

Size: ⌀96*260mm

Weight: 5KG

Pack:1 *  camera,1 *camera stand fittings,1 * U disk (software and manual)

1 Year Warranty

Please use your Barlus underwater camera with peace of mind. We offer a one year warranty. If there is a quality problem with the camera it can be repaired or returned to you free of charge. Calculated from the date of receipt of the original order.

Learn more

Shipping

Please do note that shipping is insured and takes 6-10 business days worldwide. However, you may receive your items earlier. Tracking Numbers will ALWAYS be sent so you can track them every step of the way! Cool things are worth waiting for!

100% Risk-Free Purchase

If you bought it and felt that it has some problem, don't worry. Just shoot us a message at contact zhangli@barluscam.com and we will make it right by offering you a replacement or refund. 100% Simple & Risk-Free process.


View full details

About us

Barlus is a manufacturer that has always been dedicated to creating professional and practical underwater surveillance cameras. Feel free to contact us for any further needs!

High quality imaging

Direct original image uncompressed output, 10G network transmission, fast speed and high efficiency. Provide SDK secondary development kit to realize AI intelligent application. For example: fish identification, alum use identification, pool drowning identification, etc. It can be your excellent underwater assistant.

Global Shutter

When shooting high-speed moving objects underwater, it can avoid blurring, distortion or smearing in the image of the object. More accurate and clear images of objects can be obtained. You can also observe details in slow motion.

Underwater high-speed camera captures bubbles

This industrial camera is capable of capturing high-detail shots. Some strict underwater scene studies can be performed. For example, the formation of underwater bubbles, etc.

Electric zoom

Parfocal can be achieved by observing the real-time computer screen, and the object you want to observe can be enlarged. Get the clearest picture.

  • Underwater viewing

  • Aquaculture

  • Underwater Engineering Monitoring
