BARLUS

Panoramic 360° view omni-directional HD underwater camera

Panoramic 360° view omni-directional HD underwater camera

$4,200.00 USD
$4,800.00 USD $4,200.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Model
Cable length
Power supply

For bulk purchases, please contact Tim (sales2@barluscam.com) or click on Chat with us below right to get a discount.🤑

Click below to view parameters👇

Model comparison

Model UW-360S2F-4CX10-4PCS UW-360S2F-4C6X10-4PCS
Lens 3.6mm (H.OV :90°) Lens electric focus: 0.05-4m, controlled by computer/mobile APP/NVR)
Pixel 2 MP 1920×1080P 25FPS
1 MP 1280×720P  25FPS

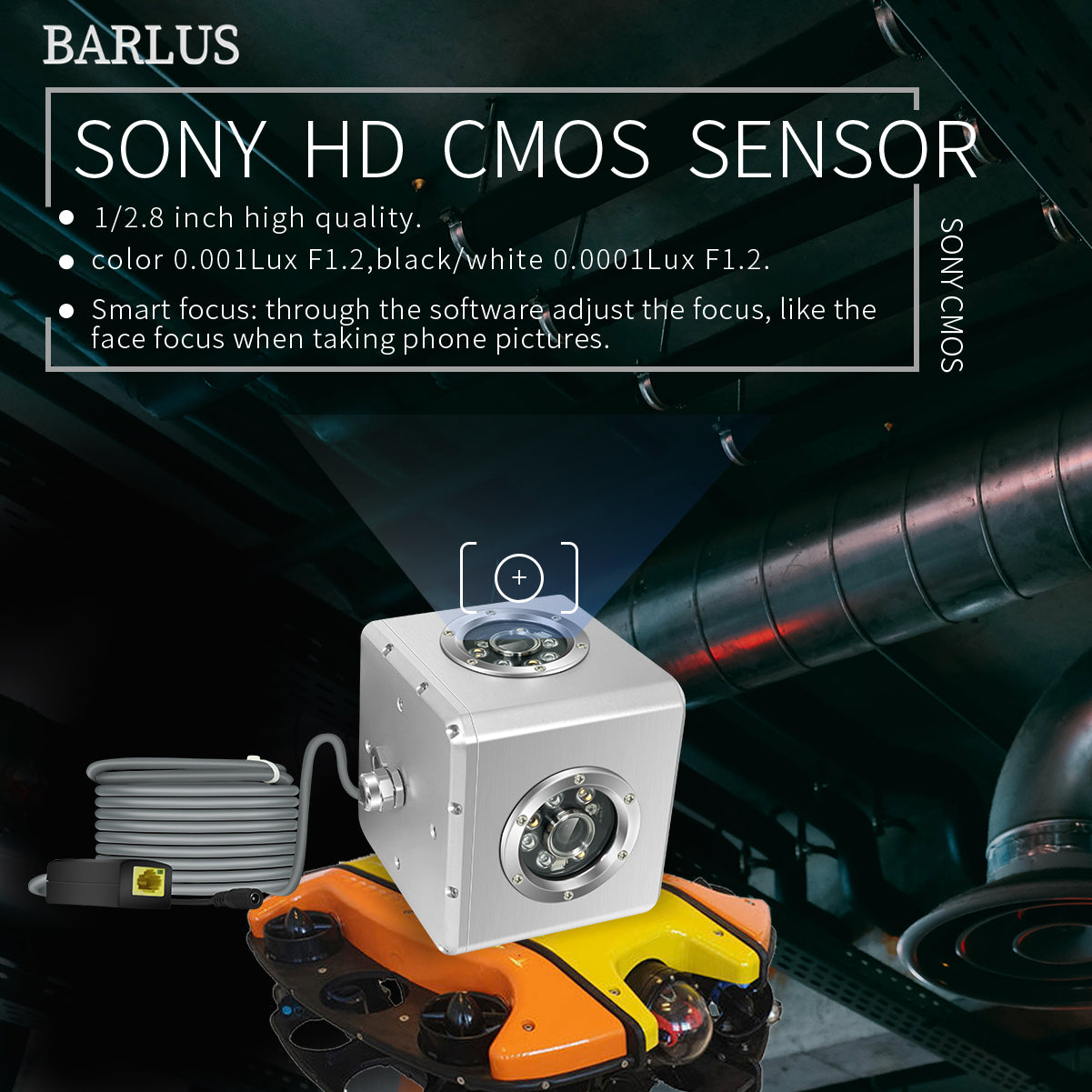

1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2		 2 MP 1920×1080P 50FPS
1 MP 1280×720P  50FPS
1/2.8" SONY CMOS sensor ,color 0.01Lux F1.2,black/white 0.001Lux F1.2
Number of built-in cameras Fours
Supplementary light (mobile/PC /NVR Settings) (Automatic light sensor control/manual control/time control) 3 modes ------ 3PCS white light, 10 levels of brightness.
(Automatic light sensor control/manual control/time control) 3 modes ------ 3PCS INFRARED lamps, grade 10 brightness.
image color settings Two modes: 1: white light - full color; 2: infrared light - automatic color for black;

Product information

Barlus underwater cameras are widely used in aquaculture cameras (fish farming, sea cucumber farming, etc.) , aquarium monitoring camera, shipboard camera, ship engine monitoring camera, marine pasture camera, underwater engineering acceptance camera, marine life detection camera, liquid operation camera for machine processing industry, Underwater machinery monitoring, Water gate monitoring of hydropower station, etc.

Support equipment: Support iOS, Android, COMPUTER,NVR. Compatible with Hikang, Dahua, Xiongmai protocol (only support Windows-IE browser for camera internal parameter setting)

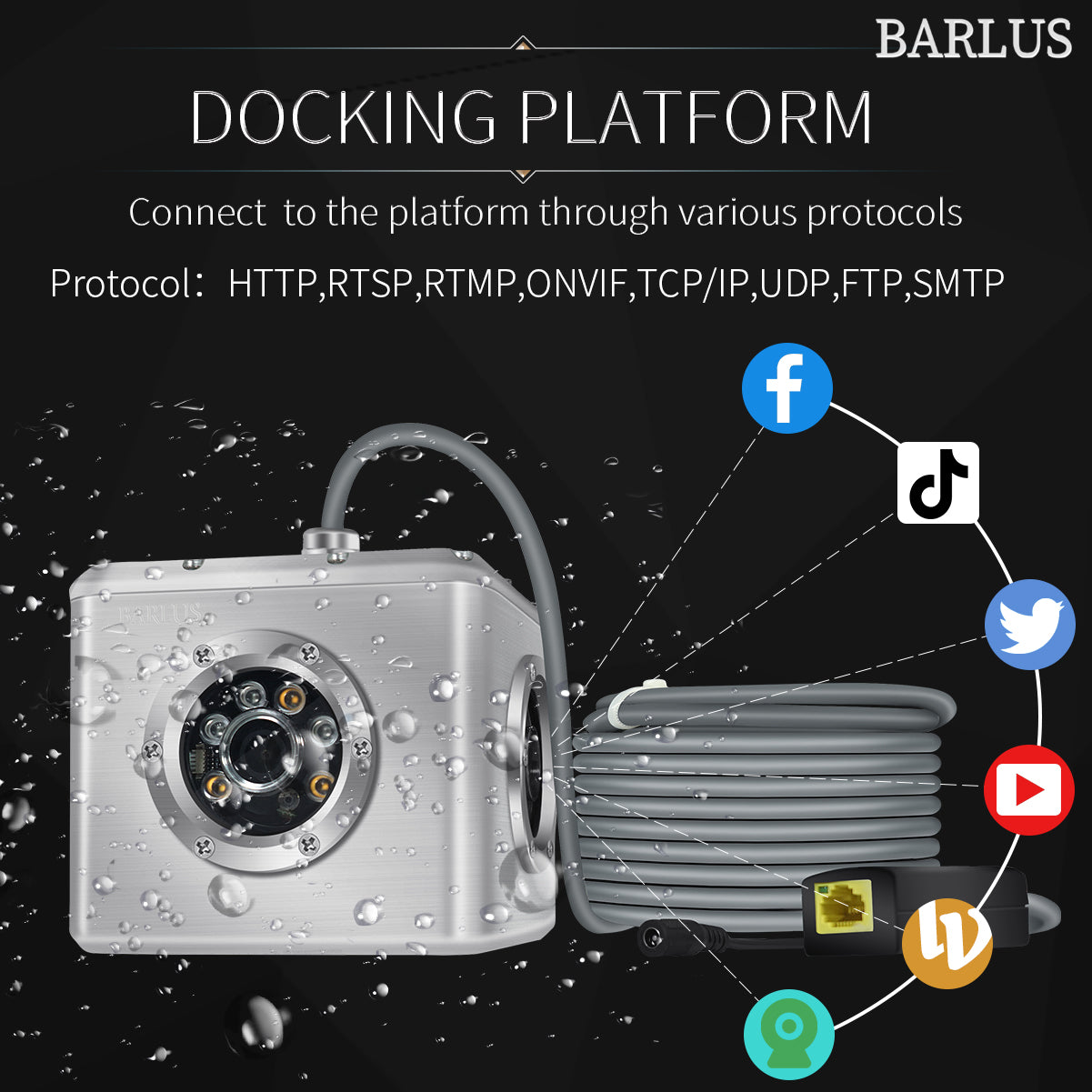

Support agreement: ONVIF, HTTP,DDNS, FTP,RTSP,RTMP,IPv4/IPv6,802.1x,HTTPS, TCP/IP, UDP, RTP, RTCP, UPNP,SMTP, NTP, DHCP, DNS, PPPOE, ;SDK Secondary development

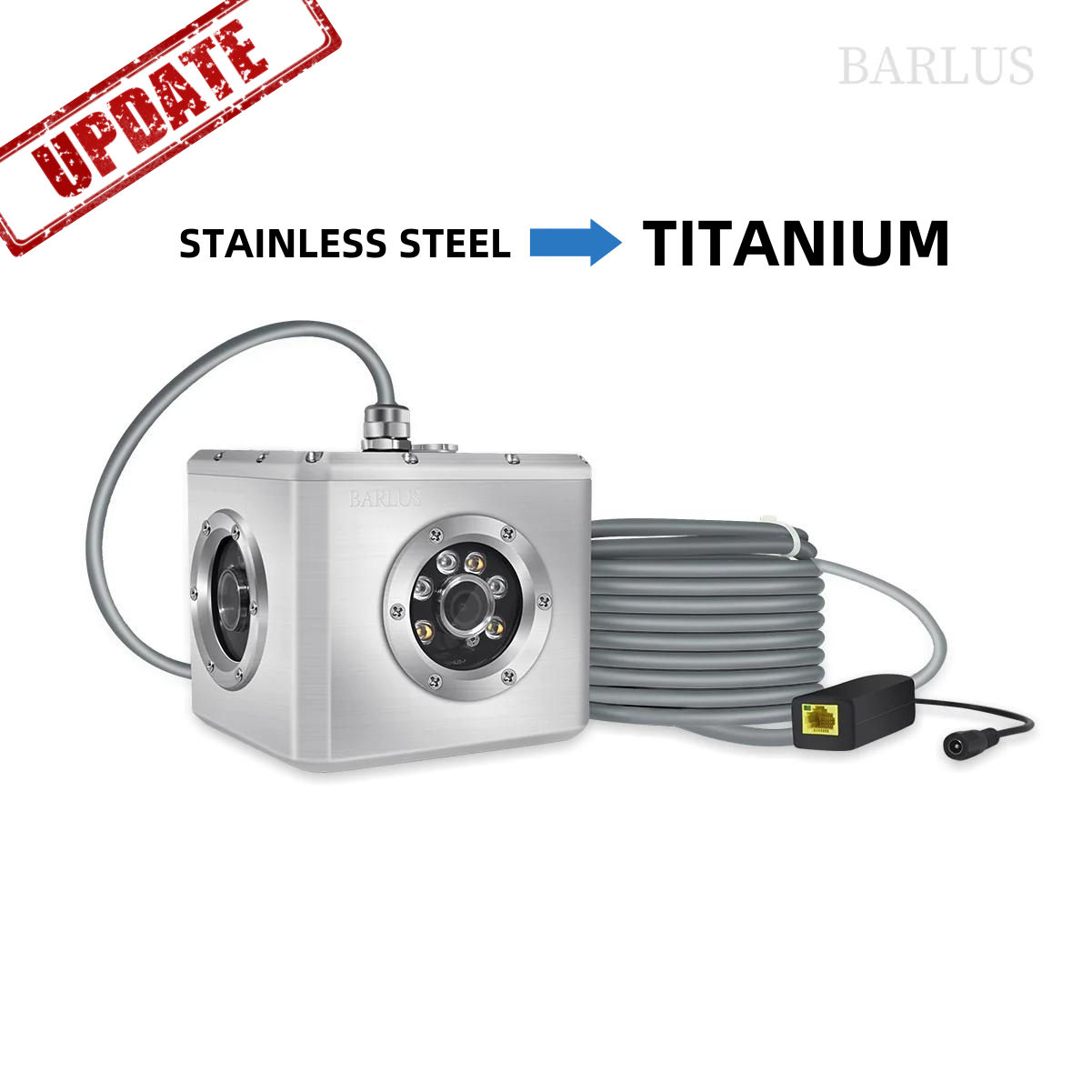

Texture: Seawater Grade Stainless Steel

Waterproofing grade: IP68 Permanently installed underwater)

Pressure: Maximum 500Kpa (maximum water depth 50M)

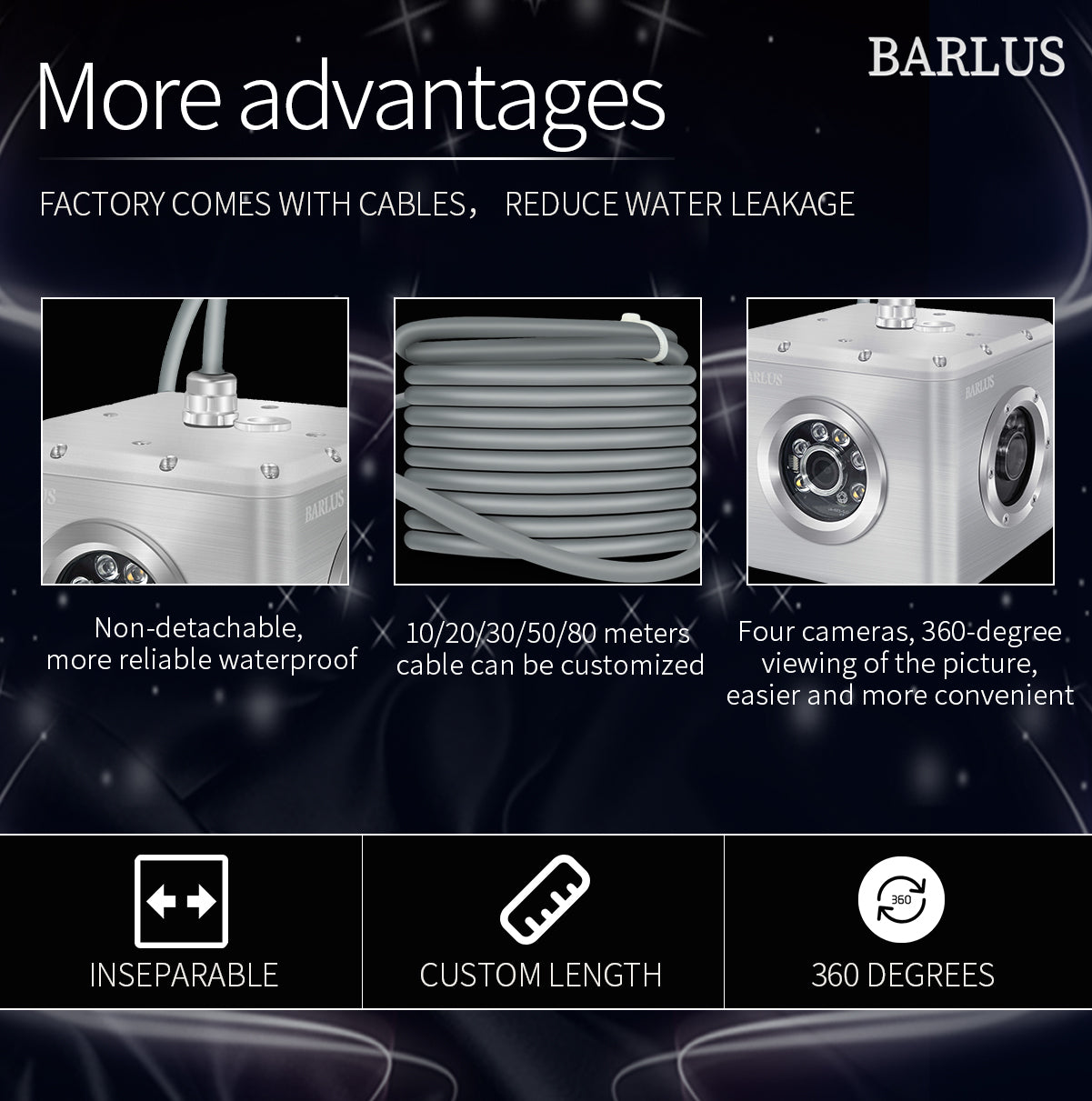

Cable: Default length of 10 meters (Max. 80 meters),PU material, diameter of 7MM. 60KG tension resistance, aging resistance, friction resistance, seawater corrosion resistance, special underwater wire.

Service environment: Land/vehicle-borne/shipborne/surface/Underwater (fresh and sea water)

Operating humidity: 0%-100%

Operating temperature: -20°~55°

Support the voltage: DC24V 2A

Camera size: 138*138*115mm

Weight: 4KG

Packaging:  1 *  camera

1 * camera stand fittings

1 * U disk (software and manual)

1 Year Warranty

Please use your Barlus underwater camera with peace of mind. We offer a one year warranty. If there is a quality problem with the camera it can be repaired or returned to you free of charge. Calculated from the date of receipt of the original order.

Learn more

Shipping

Please do note that shipping is insured and takes 6-10 business days worldwide. However, you may receive your items earlier. Tracking Numbers will ALWAYS be sent so you can track them every step of the way! Cool things are worth waiting for!

100% Risk-Free Purchase

If you bought it and felt that it has some problem, don't worry. Just shoot us a message at contact zhangli@barluscam.com and we will make it right by offering you a replacement or refund. 100% Simple & Risk-Free process.


View full details

About us

Barlus is a manufacturer that has always been dedicated to creating professional and practical underwater surveillance cameras. Feel free to contact us for any further needs!

Solve your blind spots

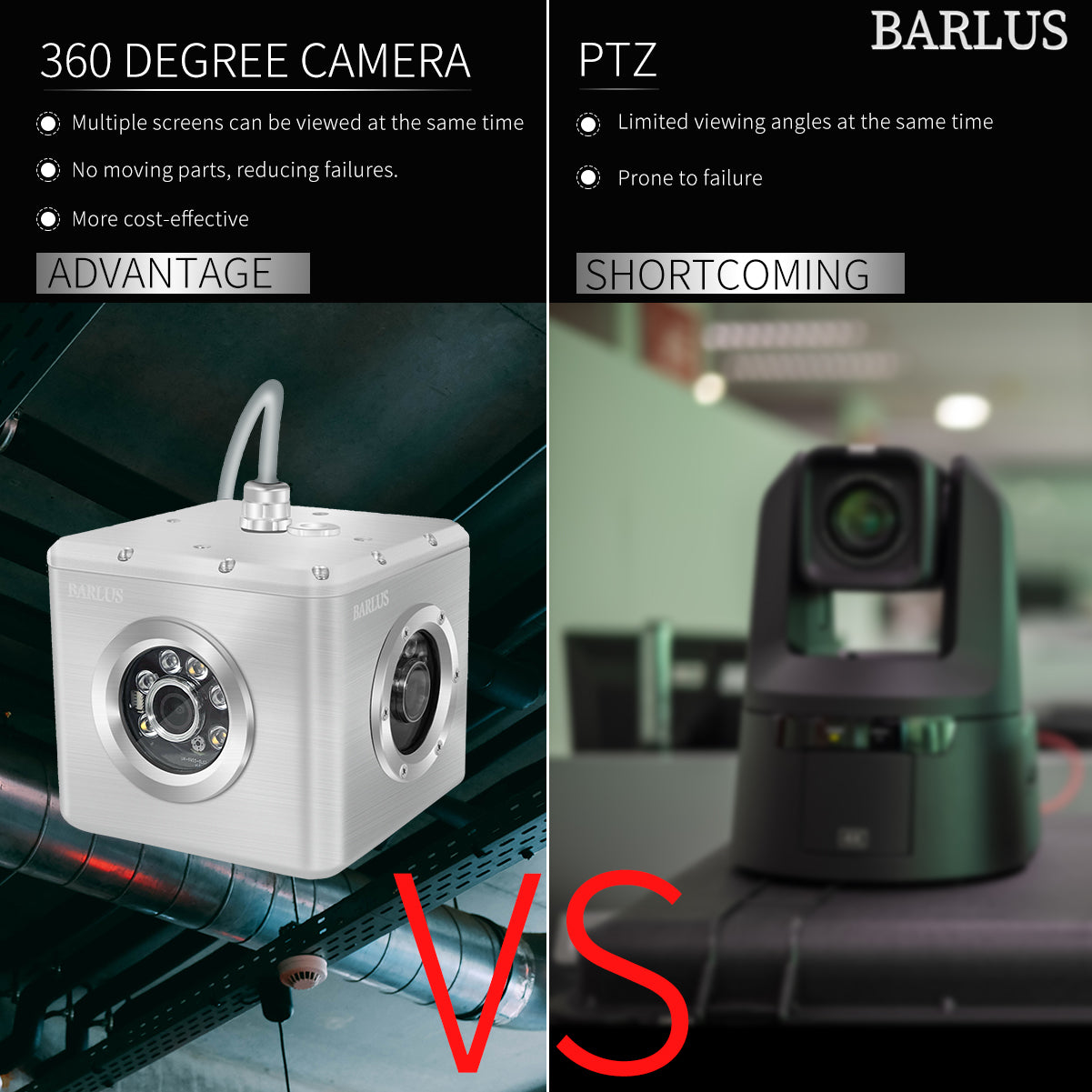

Four cameras are built in for a 360° view of underwater scenes. Maximising the camera's range of vision underwater makes it possible to see everything that is going on underwater. A camera that takes care of your field of view blindness for you!

Access to advanced customisation features

1. Can support custom sensor character overlay: can add temperature, humidity, carbon dioxide, PM2.5 and other attributes of the input
2. Lens cleaning brush: can regularly clean the residual dirt on the camera glass installed underwater for a long time, saving cleaning costs.
3. EPZT can be added: can rotate and turn the camera
4. Heating function: support for use in higher temperature environments (-30 ° ~ 55 °)
If there are above or more other requirements can contact us for customization.

Secure multifunctional underwater camera

This is a safe, waterproof (IP68) and high performance underwater camera. With safety first in mind, the camera's housing and cables are made of special underwater materials. With good corrosion resistance, anti-abrasion and pressure resistance, it can be installed and work underwater all the time. It also works well in extreme environments.

Easily view HD live video and share

Barlus' unique suite of free software systems supports instant video viewing and cloud storage throughout the day. Mobile phones/computers are able to watch videos anytime and anywhere with high definition video display to easily master underwater dynamics. Support RTMP/RTSP protocol for live streaming function and sharing to your social media. Share your wonderful underwater world to everyone.

Applicable scene

All Products

  • Underwater viewing

  • Aquaculture

  • Underwater Engineering Monitoring
