4.Mini 46MM diameter Underwater IP Camera application underwater robot

4.Mini 46MM diameter Underwater IP Camera application underwater robot

Regular price $450.00 USD
Regular price Sale price $450.00 USD
Sale Sold out
Shipping calculated at checkout.
Model
Cable length
Power supply

For bulk purchases, please contact Tim (sales2@barluscam.com) or click on Chat with us below right to get a discount.🤑

Click below to view parameters👇

Model comparison

Model UW-46A2-3DCTX10-LED UW-46S2-3DCTX10-LED UW-46A2-3LDCTX10 UW-46S2-3LDCTX10 UW-40S2-2DCX10
Lens 2.8mm (H/V:110° /80° ) 2.3MM(H/V:110° /85° )Distortionless lens
Focus Length 2M(Support customization)
HD Resolution 2MP1920×1080P25FPS
1MP1280×720P25FPS
1/2.8" SONY CMOS sensor ,
color 0.001Lux F1.2,black/white 0.0001Lux F1.2
Illumination 3PCS white led lights, None
10 level dimness
(PC/Phone/NVR Setting)
Color Full Color NONE Full Color
Camera Housing Material Alluminum Alloy Seawater Grade  Alluminum Alloy Seawater Grade  Seawater Grade
Water depth Max300Kpa   (Max water depth 30M) Max3500Kpa   (Max water depth 50M) Maximum 5000Kpa (Maximum water depth 500M)
Camera Dimension ⌀46*90mm ⌀46*80mm ⌀46*90mm ⌀46*80mm ⌀40*100mm
Net Weight 0.3KG 0.7KG 0.3KG 0.7KG 0.5KG

Product information

Features:

1. Mini 46MM diameter network camera, suitable for ROV camera, diver helmet camera, pipeline camera, etc.

2. Built-in 128GB storage

3. Corrosion-resistant stainless steel, used in seawater for a long time.

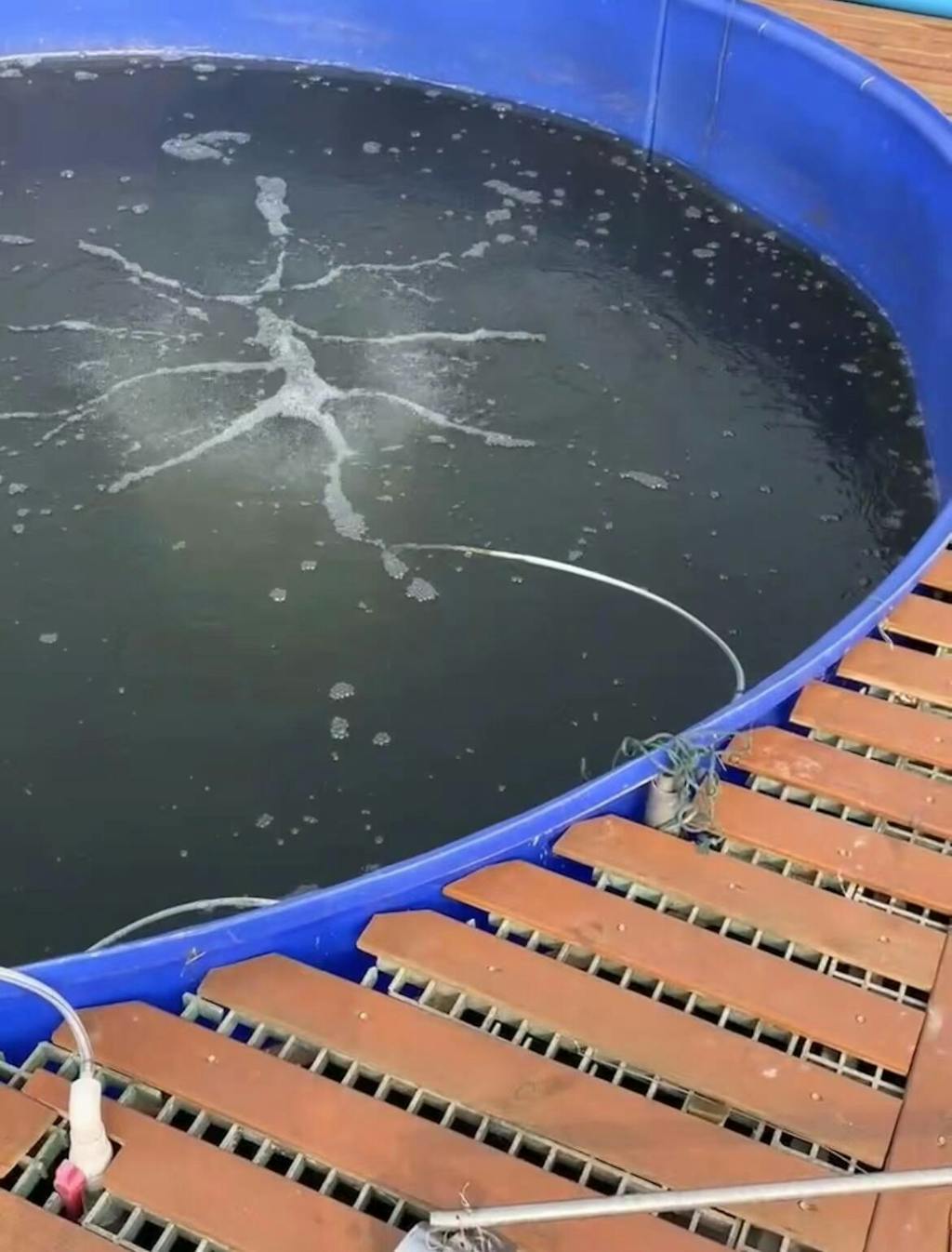

 🎥Barlus underwater cameras are widely used in aquaculture cameras (fish farming, sea cucumber farming, etc.) , aquarium monitoring camera, shipboard camera, ship engine monitoring camera, marine pasture camera, underwater engineering acceptance camera, marine life detection camera, liquid operation camera for machine processing industry, etc.

Specific information

Focus Length: 2M(Support customization)

Supporting device: Support iOS, Android,Computer,NVR.Compatibe with Hikvision,dahua,proprietary, (Only support window-IE brower for camera internal parameter setting)

Supporting agreement: ONVIF, HTTP,DDNS, FTP,RTSP,RTMP,IPv4/IPv6,802.1x,HTTPS, TCP/IP, UDP, RTP, RTCP, UPNP,SMTP, NTP, DHCP, DNS, PPPOE, ;SDK Secondary development

Storage: Built-in 128GB TF card(Optional)

Waterproof: IP68(permanent installed underwater)

Cable: Industrial PU,diameter 7MM.Resistance 60KG pull ,anti-aging,anti-friction,resistance to seawater,special underwater material.

Use environment: Under Seawater and Fresh water

Working humidity: 0%-100%

Working Temperature: -20°~55°

Power Supply: DC12V-D36V

Packing: 1* Camera+1*U disk(software and mannual)

1 Year Warranty

Please use your Barlus underwater camera with peace of mind. We offer a one year warranty. If there is a quality problem with the camera it can be repaired or returned to you free of charge. Calculated from the date of receipt of the original order.

Learn more

Shipping

Please do note that shipping is insured and takes 6-10 business days worldwide. However, you may receive your items earlier. Tracking Numbers will ALWAYS be sent so you can track them every step of the way! Cool things are worth waiting for!

100% Risk-Free Purchase

If you bought it and felt that it has some problem, don't worry. Just shoot us a message at contact zhangli@barluscam.com and we will make it right by offering you a replacement or refund. 100% Simple & Risk-Free process.


View full details

About us

Barlus is a manufacturer that has always been dedicated to creating professional and practical underwater surveillance cameras. Feel free to contact us for any further needs!

Get images easily

Video viewing on mobile devices is supported. Convenient and fast, master the underwater dynamics at any time

Built-in 128GB memory card

The camera is equipped with a 128G capacity front-end storage card inside, which can be stored centrally in case of network failure and effectively avoid image loss in case of accident.

Share the wonderful underwater

1080P HD lens capture a clear picture for you. You can view the live video in the water remotely at any time. It can also be shared live to your social media platforms. Share this exciting moment in the water with your audience.

Mini body is compact and convenient

Only 46mm diameter underwater camera! Its compact size and ultra-light weight is very convenient to use underwater. It can support installation and fixed use on underwater robots, and also allows divers to use it head-mounted. It is completely weightless.
