Barlus

Barlus MINI 50mm global shutter underwater camera for high-speed shooting

Barlus MINI 50mm global shutter underwater camera for high-speed shooting

Regular price $900.00 USD
Regular price Sale price $900.00 USD
Sale Sold out
Shipping calculated at checkout.
Model
Cable length

For bulk purchases, please contact Tim (sales2@barluscam.com) or click on Chat with us below right to get a discount.🤑

Click below to view parameters👇

Model comparison

Model GY-50T1.6-2DHX10
Lens 2.0mm(H100°*V80°)
pixel size 3.45 µm × 3.45 µm
Target surface size 1/2.9” CMOS Global Shutter
Maximum Pixels 60 fps @1440 × 1080 Bayer RG 8
Dynamic range 74 dB
Signal to Noise Ratio 41 dB
Gain Range 0 dB ~ 24 dB
Exposure time range Ultra short exposure mode: 1 μs ~ 14 μs
Standard exposure mode: 15 μs ~ 10 sec
Shutter mode Global shutter, support automatic exposure, manual exposure, one-touch exposure and other modes
Fill light None
Black and white/color Color
Data Interface 1*Gigabit Ethernet(1000Mbit/s),
SDK Support
Image buffer None
Data Format Mono 8/10/12
Bayer RG 8/10/10Packed/12/12Packed
YUV422Packed,YUV422_YUYV_Packed
RGB 8,BGR8
Operating System 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Protocols//Standards GigE Vision V2.0,GenlCam
Waterproof grade IP68

Product information

Material: Titanium
Water pressure resistance:Max. 1000Kpa (Max. water depth 100M)
Cable:Default length 10 meters, PU material, diameter 12MM. 60KG tensile strength, anti-aging, anti-friction, anti-seawater corrosion, special underwater cable.
Usage environment: Land/vehicle-mounted/boat-mounted/surface/submersible (freshwater, seawater)
Working humidity: 0%-100%
Operating temperature: -20°~55°
Input Voltage: DC12V

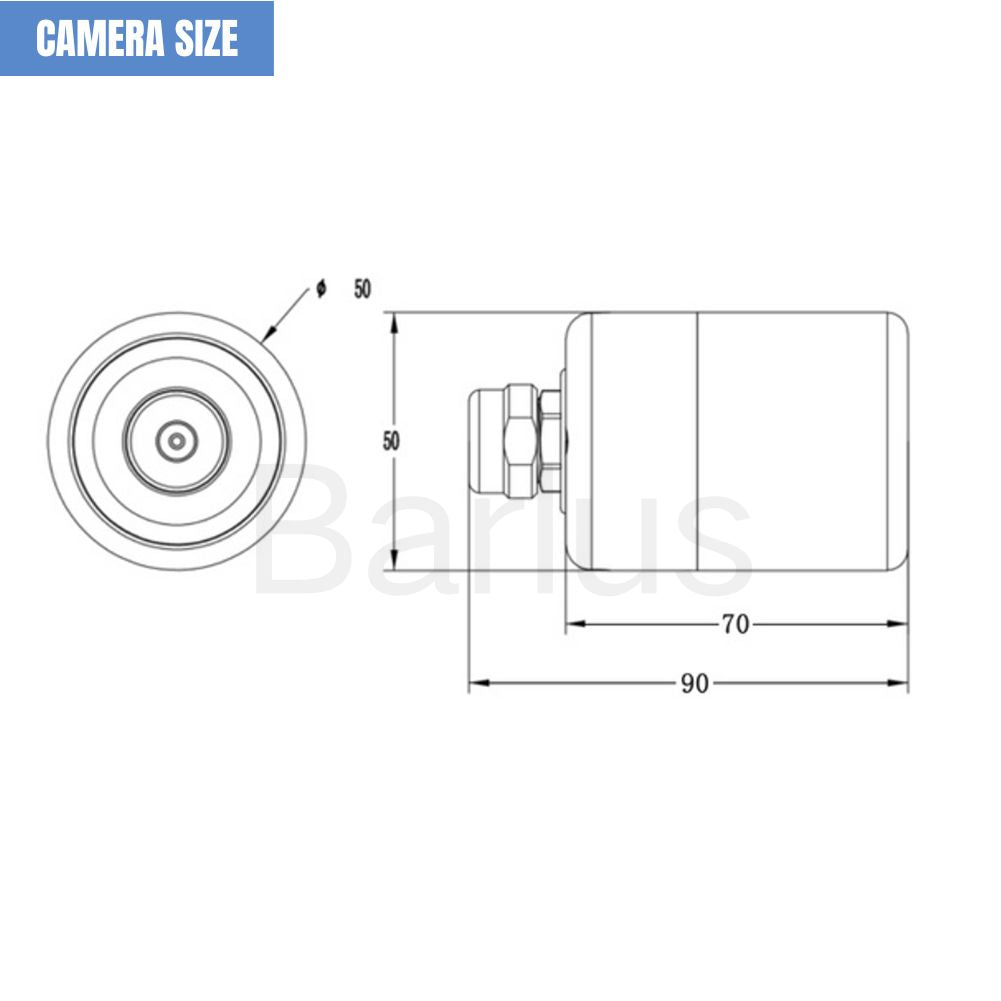

Camera Size: ⌀50*48mm
Camera weight: 0.3KG
Packaging: 1* Camera
1* Camera stand accessories
1* U disk (software and manual)

1 Year Warranty

Please use your Barlus underwater camera with peace of mind. We offer a one year warranty. If there is a quality problem with the camera it can be repaired or returned to you free of charge. Calculated from the date of receipt of the original order.

Learn more

Shipping

Please do note that shipping is insured and takes 6-10 business days worldwide. However, you may receive your items earlier. Tracking Numbers will ALWAYS be sent so you can track them every step of the way! Cool things are worth waiting for!

100% Risk-Free Purchase

If you bought it and felt that it has some problem, don't worry. Just shoot us a message at contact zhangli@barluscam.com and we will make it right by offering you a replacement or refund. 100% Simple & Risk-Free process.

View full details

About us

Barlus is a manufacturer that has always been dedicated to creating professional and practical underwater surveillance cameras. Feel free to contact us for any further needs!

Motion Artifact-Free Imaging&Elimination of Rolling Shutter Distortion

Global shutter technology prevents the distortion caused by rolling shutters, commonly seen in traditional shutter mechanisms. This ensures that fast-moving subjects, such as swimming fish or rapidly changing underwater scenes, are captured without the characteristic skewing or warping.

External Trigger Synchronization

It capture offers precise timing, reduced discrepancies, and improved efficiency across a range of applications, making it a valuable technology for those requiring accurate and synchronized image or video capture from multiple perspectives.

Perfect Pixel Combination - Reduces Data Processing Overhead

1.6 MP lower pixel configuration, 60 fps high frame rate. Combined with global shutter function. Fast readout helps capture the entire image at once. Low power consumption and less data is generated, thus reducing data processing requirements. This simplifies storage and processing workflows, making it easier to manage and analyze large numbers of images in real-time applications.

Compact and durable professional design

The underwater camera boasts a titanium housing with a compact 50mm mini diameter, a corrosion-resistant design for seawater durability, and the capability to operate seamlessly at depths of up to 100m, ensuring optimal performance in challenging underwater environments

  • Underwater viewing

  • Aquaculture

  • Underwater Engineering Monitoring
