Barlus

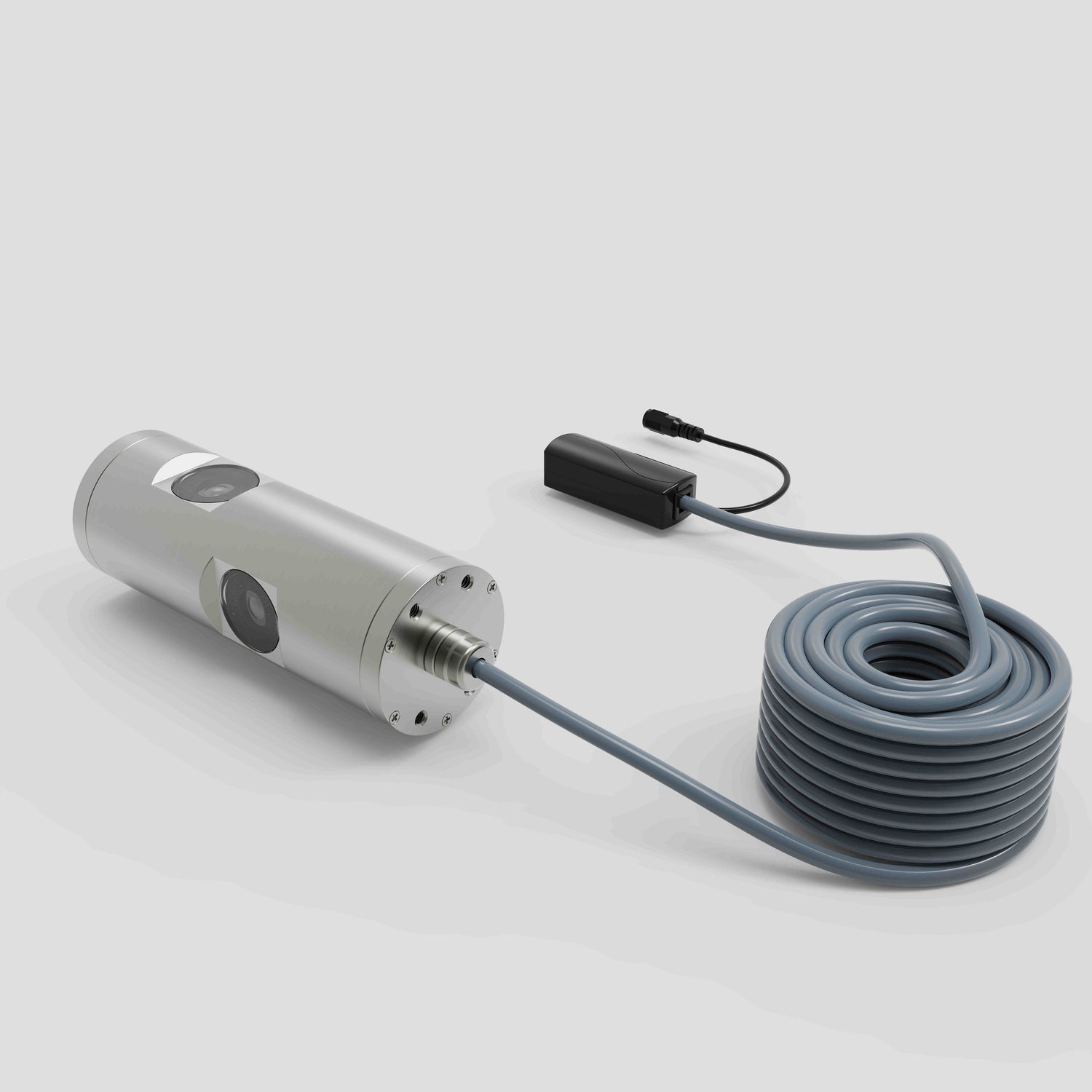

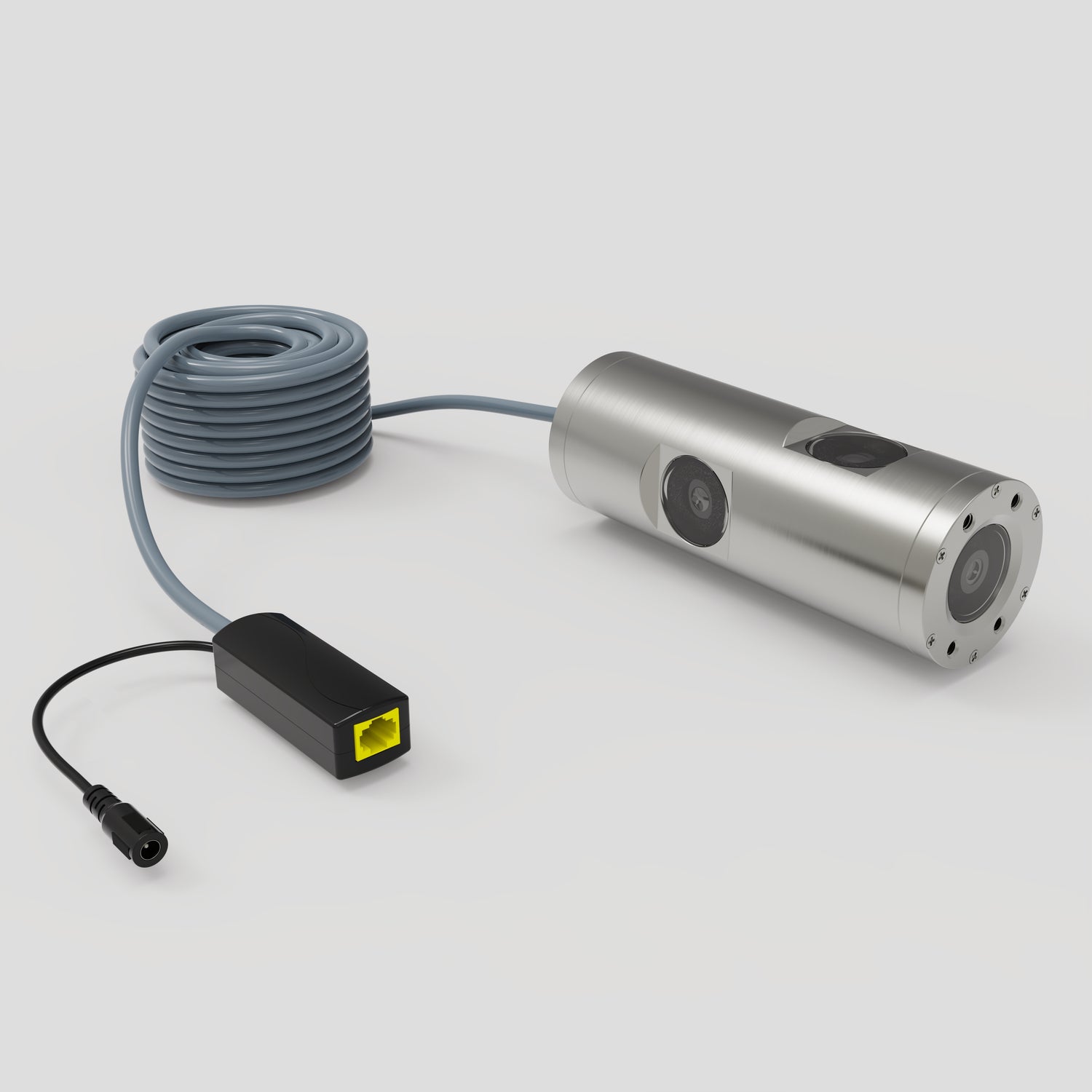

Omnidirectional Underwater Camera 360° mini five-in-one HD underwater camera without dead angle

Omnidirectional Underwater Camera 360° mini five-in-one HD underwater camera without dead angle

Regular price $3,000.00 USD
Regular price Sale price $3,000.00 USD
Sale Sold out
Shipping calculated at checkout.
Moel
Cable length
Package Options

For bulk purchases, please contact Tim (sales2@barluscam.com) or click on Chat with us below right to get a discount.🤑

Click below to view parameters👇

Model comparison

Model PC Control box
Sreen Size 10 inches
Screen resolution 1024*600
Screen type IPS
Display viewing angle 170°
Video access 8MP/5MP/4MP/3MP/2MP
Number of input channels 4ch
Playback channels 1ch
USB 2PCS
Network port 2 RJ45
support system Windows system
Material Engineering PP
Host waterproof level IP65
Storage 500GB HDD
Battery capacity 6000MAH
Support voltage DC24V (battery charger 25.2V)
Working humidity 0%-55%
Operating temperature -20°~55°
Host size 367*296*152MM
Host weight 3.5KG
Package Weight 4kg





Model

YSK5-3D5X10-4CAM YSK5-3D5X10-4CAM-LED YSK5-3D5X10-5CAM YSK5-3D5X10-5CAM-LED
Lens 2.8mm (H.FOV:95° )
pixel 5MP 2592×1944P 20FPS
4MP 2560×1440P 20FPS
3MP 2304×1296P 30FPS
2MP 1920×1080P 30FPS
1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2
Number of built-in cameras Fours Five
 Light filling lamp  nothing Three white lights, level 10 brightness. (to be automatic light sensor control/manual control, time control) three kinds nothing Three white lights, level 10 brightness. (to be automatic light sensor control/manual control, time control) three kinds
image color settings full color White light - full color full color White light - full color

Product information

Support equipment: Support iOS, Android, computer,NVR.

Support agreement:   IONVIF, HTTP,DDNS, FTP,RTSP,RTMP,IPv4/IPv6,802.1x,HTTPS, TCP/IP, UDP, RTP, RTCP, UPNP,SMTP, NTP, DHCP, DNS, PPPOE, ;SDK Secondary development

Texture: Seawater Grade Stainless Steel

 Waterproofing grade: IP68(Permanently mounted underwater)

 Pressure: Maximum 500Kpa (maximum water depth 50M)

 Cable: Default length of 10 meters (Max. 80 meters),PU material, diameter of 7MM. 60KG tension resistance, aging resistance, friction resistance, seawater corrosion resistance, special underwater wire.

 Service environment: Land/vehicle-borne/shipborne/surface/Underwater (fresh and sea water)

Note: Aluminum alloy is not suitable for use in seawater environment.

 Operating humidity: 0%-100%

 Operating temperature: -20°~55°

 Support the voltage: DC24V 2A

 Size: Φ70*190mm

 Weight: 2.5KG

 Packaging: 1 * camera, 1 * camera stand fittings , 1 * U disk (software and manual)

1 Year Warranty

Please use your Barlus underwater camera with peace of mind. We offer a one year warranty. If there is a quality problem with the camera it can be repaired or returned to you free of charge. Calculated from the date of receipt of the original order.

Learn more

Shipping

Please do note that shipping is insured and takes 6-10 business days worldwide. However, you may receive your items earlier. Tracking Numbers will ALWAYS be sent so you can track them every step of the way! Cool things are worth waiting for!

100% Risk-Free Purchase

If you bought it and felt that it has some problem, don't worry. Just shoot us a message at contact zhangli@barluscam.com and we will make it right by offering you a replacement or refund. 100% Simple & Risk-Free process.


View full details

About us

Barlus is a manufacturer that has always been dedicated to creating professional and practical underwater surveillance cameras. Feel free to contact us for any further needs!

Five built-in cameras

The number of cameras built into the product can be up to five. All-round to achieve multi-angle viewing, volume and weight than the traditional PTZ camera is lighter and smaller. Simultaneous viewing in multiple directions can be achieved without operating rotation. This is very convenient.

Long-lasting battery life

Five 2.8mm CMOS fixed focus lenses with five megapixels of HD pixels. The focus is very fast and stable with no distortion. Good image quality and clear picture. The fixed-focus lenses are extremely adaptable in low light conditions. Well worth the experience!

Guaranteed Safety All-in-one kit

The all-in-one camera system kit for you makes it easy to see what's going on underwater from your boat.
As a professional-grade underwater camera, it not only has high performance, but the strength of the body is also an important factor for Barlus to consider in order to ensure that it can shoot in harsh environments.

View and share anytime, anywhere

See what's going on in your waters wherever you are, whenever you want. You can watch and control in real time directly from your phone/computer. And our camera supports RTMP protocol. If you want to live stream your lovely fish to your social media, it's no problem at all!

  • Underwater viewing

  • Aquaculture

  • Underwater Engineering Monitoring
