Swimming pool underwater camera 140 ° ultra-wide angle with vertical bracket for easy installation

$810.00 USD
$810.00 USD
Tax included. Shipping calculated at checkout.
Pixel: 2MP
Frame rate: 60FPS
Cable length: 10m
Model: SW-SK2-2D6X10-VRC
  • PayPal

For bulk purchases contact Tim for discounts:sales2@barluscam.com
$810.00 USD
$810.00 USD

-140 ° ultra wide angle for a wider underwater view
-Vertical back cover leads out. Easy to install
-Multiple models are available for 1080p-4K.
-Seawater grade stainless steel with good corrosion resistance

Model SW-SK2-2D6X10-VRC SW-SK5-2D5X10-VRC SW-SK8-2DX10-VRC
Lens 1.8mm (H.FOV:146° ）lens
Pixel 2 MP 1920×1080P
60FPS		 5MP 2592×1944P
50FPS		 8MP 3840×2160P
30fps
sensor 1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2
Fill light NO
Image color Full color
Support Devices PC, NVR.
Support Protocols IPv4/IPv6,802.1x,GB28181,RTSP,RTMP,ONVIF;HTTP,HTTPS,TCP/IP,UDP,RTP,RTCP,UPNP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,SDK
Material Seawater grade stainless steel
Waterproof grade IP68 (permanently installed underwater)
Depth rating Max. 500Kpa (Max. water depth 50M)
Cable Default 10 m(up to 80 m), PU material, diameter 7MM.
Usage Environment Land/vehicle-mounted/boat mounted/surface/submersible (freshwater and seawater)
Operating temperature -20°~55°
Support Voltage 3 options:
Default option 1: DC24V/POE power supply (POE switch input 48V-54V, compatible with IEEE.802.3af/at standards)
Option 2: DC24-DC36V
Option 3: DC12V (selectable when cable length ≤ 10m)
Camera Size ⌀74*75.3mm
Weight 1.5KG，Whole box ：280*260*110mm / 2.5KG
Package 1* Camera
1* Camera mounting bracket

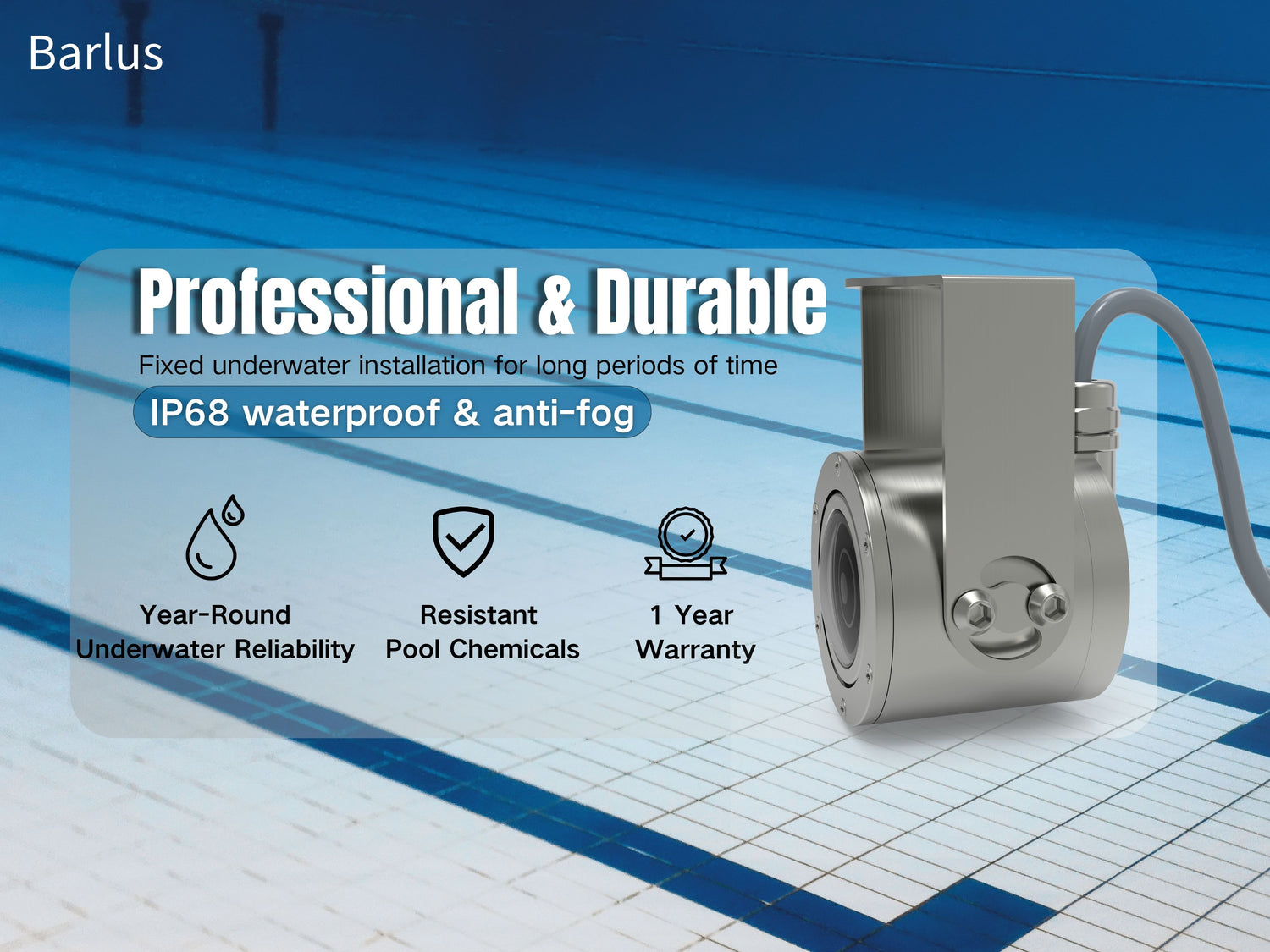

Year-Round Underwater Reliability

Engineered for permanent underwater installation, this IP camera delivers 24/7 monitoring, season after season. Its pressure-balanced design and robust sealing prevent leaks and internal fogging, ensuring stable performance in pools, aquaculture tanks, coastal structures, or decorative ponds—with minimal maintenance required.

Ultra-Wide 140° Underwater View

Capture a broader perspective with a 140° ultra-wide-angle lens that significantly reduces blind spots. Available in models from 1080p to 4K resolution, it provides sharp, detailed visuals even in low-light conditions, ideal for monitoring pool safety, observing marine life, or inspecting underwater equipment.

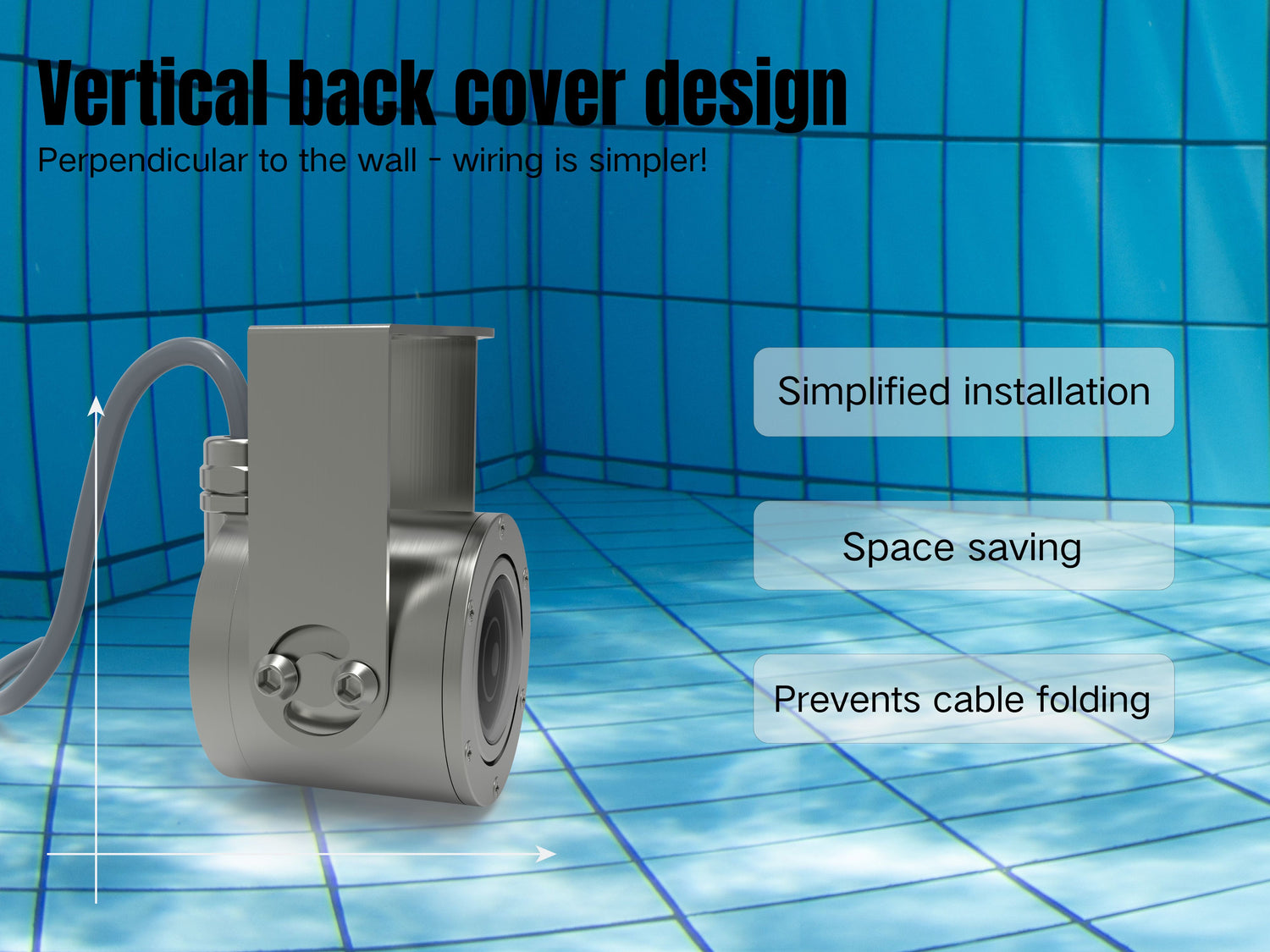

Streamlined Installation with Vertical Exit

The vertical back cover allows cables to exit directly and cleanly along the wall or mounting surface. This design simplifies routing, protects connections.

Built to Last with Marine Stainless Steel

Constructed from corrosion-resistant stainless steel suited for both chlorinated and saltwater environments. , ensuring long-term durability and reliable operation with reduced upkeep.
