  3. Barlus Radiation Resistant PTZ Underwater Camera 30x Optical Zoom for Nuclear Power Plants
Par Barlus

Barlus Radiation Resistant PTZ Underwater Camera 30x Optical Zoom for Nuclear Power Plants

Contact us for a quote

  • PayPal

For bulk purchases contact Tim for discounts:sales2@barluscam.com
$0.00 USD
$0.00 USD

Note:

Please contact us for pricing and purchasing information. Self-ordering is invalid and cannot be shipped. Thank you for your understanding.



The Barlus underwater radiation-resistant PTZ camera is a “eye” tailor-made for the high-radiation underwater environment of the nuclear industry. With its outstanding environmental tolerance, flexible observation capabilities, and ultra-high reliability, it ultimately realizes its core value of ensuring personnel safety, improving facility operation safety levels, and maintenance efficiency.

Model PTZT5Z47141-R-WJ PTZT8Z47141-R-WJ
lens 4.7-141mm motorized zoom lens Wide(H:60.5,V:35.1),Tele(H:2.3,V:1.3)
Pixel 5MP 2592×1944P 50FPS
4MP 2560×1440P 60FPS
3MP 2304×1296P 60FPS
2MP 1920×1080P 60FPS

1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2		 8MP  3840*2160P 30FPS
5MP 2592×1944P 30FPS
4MP 2560×1440P 30FPS

1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2
Fill light (Auto/Manual control) 2 ways ------ 6PCS white light, 10 levels of brightness.
image color color
Supported Devices Computer, NVR.
Supported Protocols IPv4/IPv6,802.1x,RTSP,RTMP,ONVIF;HTTP,HTTPS,  TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,SDK Secondary development
material titanium
waterproof rating IP68 (permanently installed underwater)
depth rating Max. 500Kpa (Max. water depth 50M)
Connection Connector watertight connector
operating environment Land/vehicle-mounted/ship-mounted/surface/underwater (fresh and salt water)
Pan/Tilt/Zoom 360° rotation horizontally, 180° vertically
speed Horizontal: 35°/S, Vertical: 75°/S
Operating humidity 0%-100%
Supported Voltage DC24V
Camera Size ⌀138MM，height.393.52MM
Radiation tolerance (dose rate) customizable
Radiation tolerance (total dose) customizable
packages 1* Camera
1* Camera bracket
1* USB flash drive (software and manual)

Barlus

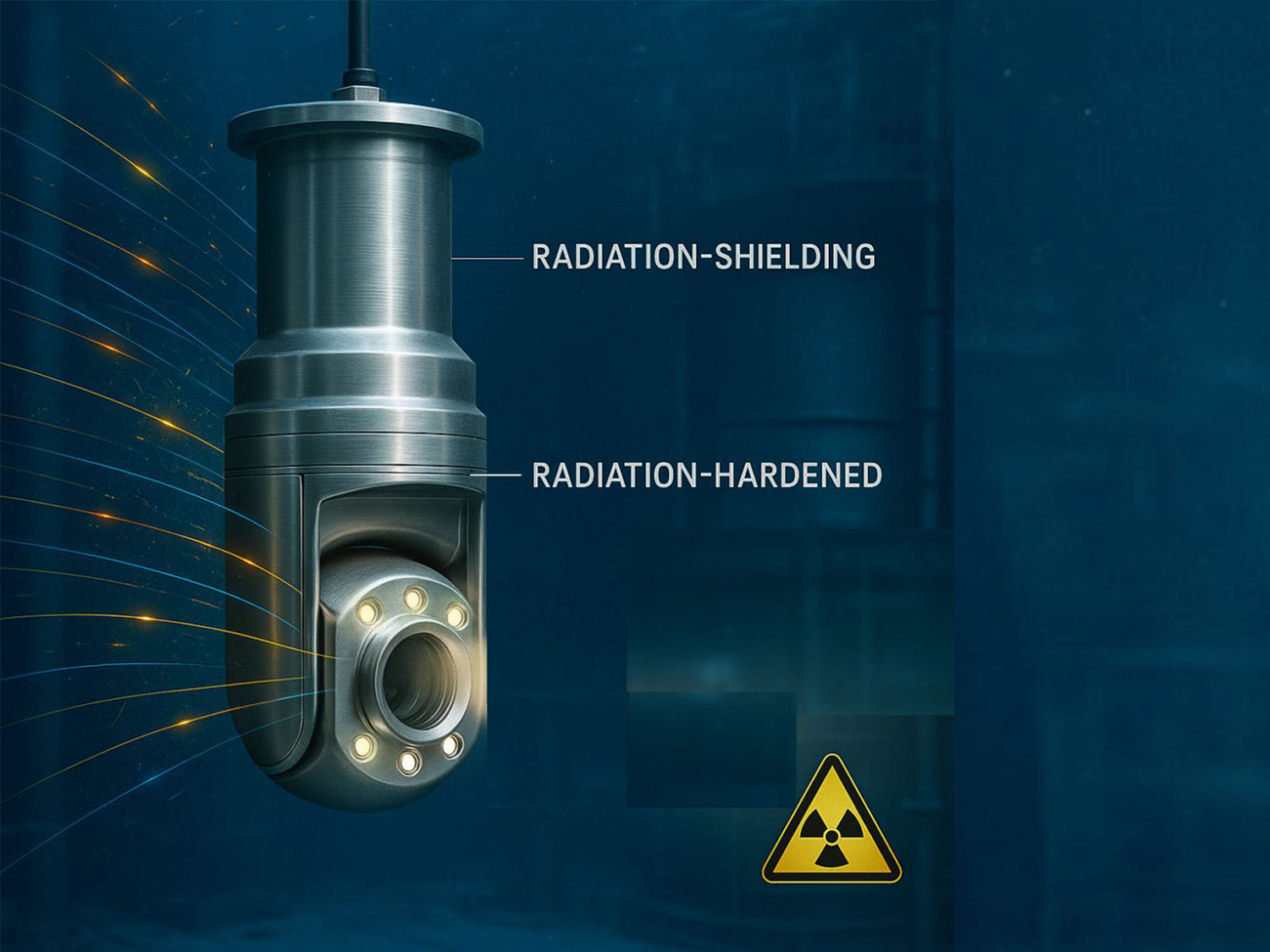

Designed specifically for radiation-resistant environments

Using special shielding materials and radiation-hardened design, it can operate stably for a long time in high-dose gamma ray and neutron radiation environments without failure or serious deterioration in image quality, ensuring continuous monitoring of critical areas.

Comprehensive Flexible Monitoring

Provides 360° continuous horizontal rotation and 180° tilt capability, combined with 30x optical zoom and auto focus, to achieve ultra-wide coverage with no blind spots.

Remote precise control: Operators can precisely control the camera's direction, zoom, and focus from a safe area (away from radiation sources) via a control console, enabling detailed inspections of critical equipment, welds, valves, foreign objects, and more without personnel needing to approach hazardous areas.

2.5k/4K + 30× optical zoom system

Ultra-high resolution clearly identifies minor defects (such as cracks on fuel rod surfaces, weld corrosion, foreign objects as small as 0.1 mm), and captures key text information such as radiation labels and instrument readings.

The zoom lens can be used to zoom in on the deformation of the fuel assembly rack or the details of the robotic arm's gripper.

Improving safety and efficiency

Keep operators away from high-radiation hazardous areas, significantly reduce radiation exposure, and ensure personnel health and safety.
